Chapter 1 The Evolution of Configuration
Management in Drupal

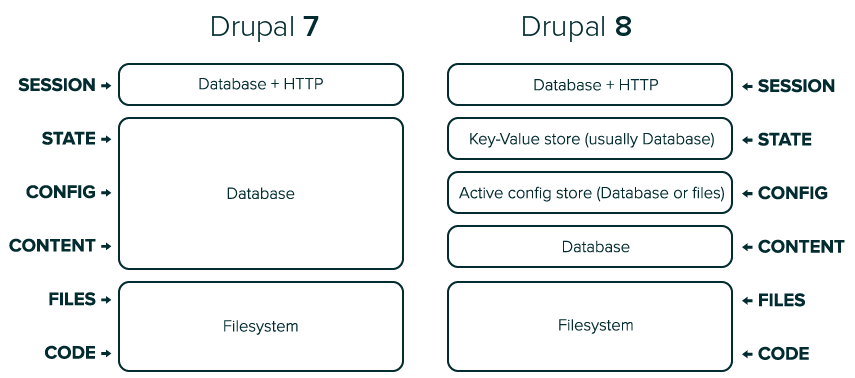

The long march to config
management in Drupal

• Historically, Drupal has kept both configuration and content in the same database.
  Every time you click in the administrative interface, no record is kept.
• Drupal 6: Features appears, with the possibility to export configuration to PHP code. (imperative)
• Drupal 7: Features support is mature, but still relying on third parties and incomplete.
• Drupal 8: Configuration and content are separated, configuration is text-based. (declarative)

The database-driven workflow disadvantages

• Default in Drupal 6 and Drupal 7 (core)
• Standard approach: you click, you save, Drupal saves to database and forgets.
• BAD: Mixing configuration and content.
• BAD: Losing track of configuration changes.
• (Theoretically) still possible in Drupal 8!

The Features-driven workflow drawbacks in D7

• A fundamental structural flaw: to package configuration into modules, you need to make it exportable to "code"
• Features is very good for packaging, not as good for exporting; but there's no packaging without exporting.
• Not everything is exportable/traceable.
• You must "whitelist" elements to be tracked: you never have the whole site under control.
• (Theoretically) still possible in Drupal 8!

Chapter 2
A closer look at Configuration Management

An overview

Configuration Management

• Provided by the config core module.
• Part of the standard installation profile.
• Provides import/export functionality for site configuration.
• Allows to deploy configuration from one environment to another, provided they are the same site.

Configuration

• Original/Optional configuration can be provided by profiles, modules, and themes.
• Configuration is stored in code, in YAML files, one per configuration object.
• Provided configuration becomes active configuration after installation.
• Active configuration is stored in the database by default.

A sample YAML file

uuid: d1329a45-acab-4599-bce9-972d6707b1e6
name: 'Drupal 8'
mail: [email protected]
slogan: ''
page:
  403: ''
  404: ''
  front: /node
admin_compact_mode: false
weight_select_max: 100
langcode: en
default_langcode: en
_core:
  default_config_hash: yXadRE77Va-G6dxhd2kPYapAvbnSvTF6hO4oXiOEynI


Configuration stores

• Active store: the actual site configuration.
• Sync store: used for temporary storage.
  Initially empty it's populated at the first configuration export
• The two have the same structure.

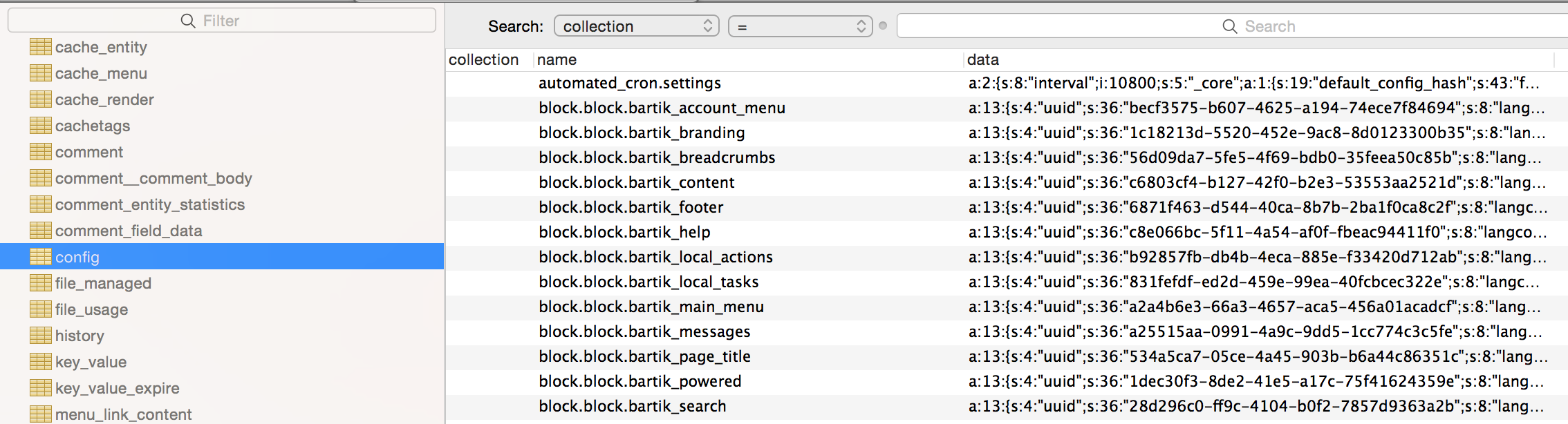

Active store

The active store is in the database by default.

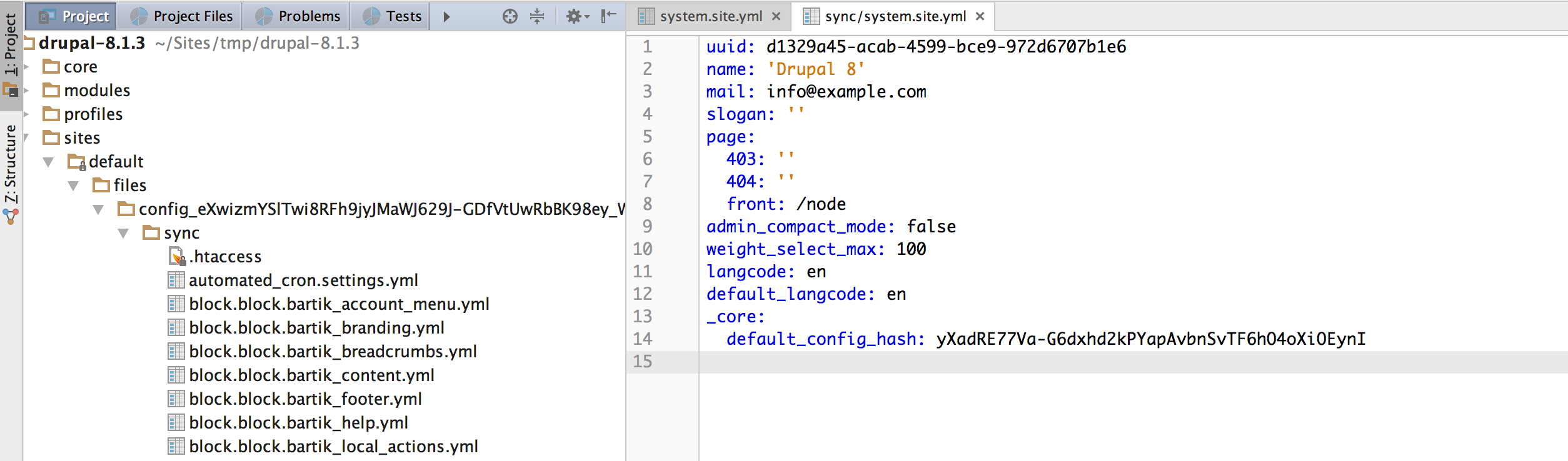

Sync store

The sync store is in the filesystem.

Setting up sync store

• The default location for the sync directory is inside a randomly-named directory in the public files path
• Convention: change sync config directory in sites/default/settings.php


  $config_directories = array(
    CONFIG_SYNC_DIRECTORY => '/directory/outside/webroot',
  );


  Configure it so that it is git-versioned and protected.

Importing, exporting, and synchronizing configuration

• Exported configuration will be stored in sync directory.
• Staged configuration can be imported to become active configuration.
• Once import is run, new modules are enabled, new fields, content types, etc. are added, in short all changes are live.
• IMPORTANT: importing and exporting entirely wipes out the current configuration.

Configuration
dependencies

dependencies:
  config:
    - field.field.node.article.body
    - field.field.node.article.comment
    - field.field.node.article.field_image
    - field.field.node.article.field_tags
    - node.type.article
  module:
    - comment
    - image
    - text
    - user


Required configuration

• Defined in the config/install sub-directory.
• One file per configuration item.
• Imported when module is enabled.
• Then fully owned by the site (original files are ignored)
• Needs to depend on module that provides it or explicitly removed when module is uninstalled.

Optional configuration

• Defined in the config/optional directory.
• Depends on other modules.
• Imported when a module is enabled and/or the relevant dependency is enabled.
• Example: the node module and the views it ships with.

Optional configuration

...
views.view.*:
  type: config_entity
  label: 'View'


A guided example of Configuration Management

Reference Use Case

Modify the configuration of a production site:

• Keeping the site online all the time.
• Developing/testing the new configuration on a development copy.
• Exporting the configuration changes from development and importing them into production.
• NOT transfering partial config between different sites.

Step 1 of 6 Clone Site to Dev

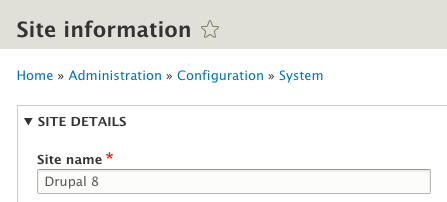

Step 2 of 6 Modify Configuration

Production

Site operates normally:

• new users.
• new content.

Development

Configuration changes...

Step 3 of 6 Export Configuration

$ drush cex
Differences of the active config to the export directory:

 Collection  Config       Operation
             system.site  update
The .yml files in your export directory (config/sync) will be deleted and replaced with the active config. (y/n):


Step 4 of 6 Import into Sync

$ git pull


Step 5 of 6 Review Changes

$ drush config-import --preview=diff
Only in config/sync: .htaccess
...
 uuid: d1329a45-acab-4599-bce9-972d6707b1e6
-name: 'localhost'
+name: 'Drupal 8'
 mail: [email protected]
 slogan: ''
 page:
Import the listed configuration changes? (y/n):


Step 6 of 6 Apply Changes

$ drush cim
 Collection  Config       Operation
             system.site  update
Import the listed configuration changes? (y/n):


Chapter 3
Configuration API

Configuration items

Configuration items, as seen from PHP, can be either:

• Configuration Objects:
  For singular configuration items (like system.site.yml)
  Extend \Drupal\Core\Config\ConfigBase
• Configuration Entities:
  For multiple configuration items like Views or Date Format
  Extend \Drupal\Core\Config\Entity\ConfigEntityBase

Mutable and immutable configuration

• Immutable: retrieved in read-only mode



                $config = \Drupal::config('system.site');


• Mutable: retrieved in read-write mode (use to set values)



                $config = \Drupal::configFactory()->getEditable('system.site');


Overriding "on the fly"

• The $conf array is still available as $config
• Useful in settings.local.php:
  Differentiate development and production environment

$config['system.logging']['error_level'] = 'verbose';


Overridden configuration

• Scenario: a module provides configuration, a forced setting (like $config or GUI) overrides it.
• The configuration object contains original and overrides.
• The GUI form does not show the overridden value.

$config['system.site']['name'] = 'New title';


$original = \Drupal::config('system.site')->getOriginal('name', FALSE);
// Returns "Drupal 8".

$overridden = \Drupal::config('system.site')->get('name');
// Returns "New title".


Working with states

Reading and writing states

// Get last cron run timestamp.
$time = \Drupal::state()->get('system.cron_last');
// Set cron run timestamp.
\Drupal::state()->set('system.cron_last', REQUEST_TIME);


Chapter 4
Features for Drupal 8

Features for Drupal 8

• Depend on Configuration Update Manager.
• Focus on packaging configuration for reuse purpose only.
• Meant to be a development module: features do not depends on Features module.

What’s new?

• Assignment plugin.
• Features bundles.
• User interface is provided by a separate module, included in the project package.
• Naming conventions enforcement.

The new role of Features

• A module for developers.
• Administration interface at config/development/configuration/features rather than under structure.
• Don’t use for deployment in production (D7 way)
• Don’t even enable it in production (use CM)

Features workflow

• If you use features 8.x for deployment
  ⇒ you are doing it wrong. ™
• Re-use configuration for other projects!
• Synchronize partial configuration between different sites.
• Use features in development environments.

Features workflow

Chapter 5 Working with Configuration Management

Working with Team of developers

• Share a Git repository for both code and configuration
• Install site starting from initial configuration.
• Adopt “A successful Git branching model” (cit.)

Project bootstrap

Day-yo-day development as a team

Production deployment

1. Pull code and configuration from master branch.
2. Run updates: drush updatedb.
3. Import configuration: drush cim.
4. Update entity schema: drush entup.

Important: the order must be respected.
An issue on d.o will enforce it.

Note: this assumes no configuration changes on production.

Working with Changes on production

• Same as Team of developers, but this time...
• Configuration on production is changed by Geeky Client™ overnight, without notice.

Changes on production
==
Development on production

Options for developer's sanity:

• Option 1: Lock configuration changes on the live site.
• Option 2: Export and commit to a dedicated branch. Ideally this would be the responsibility of a dedicated person.

Option 1Locking configuration on production

$settings['config_readonly'] = TRUE;

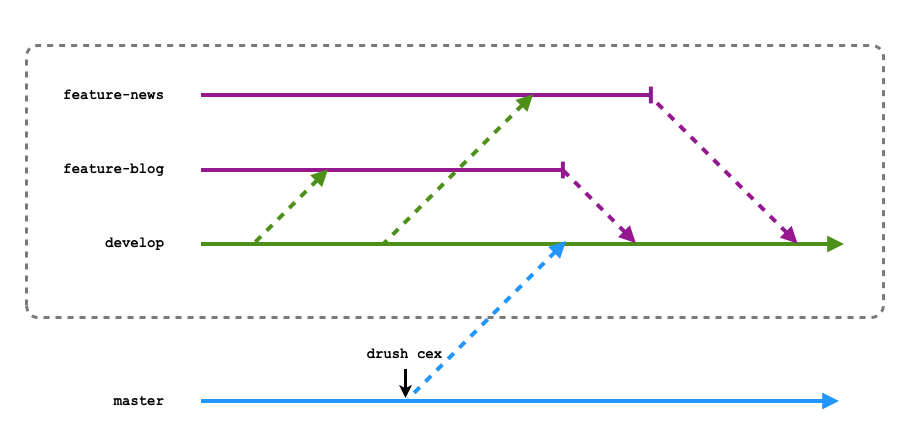

Option 2Export to a dedicated branch

Working withDevelopment configuration

• Scenario: enable devel module only in development environment.
• Problem: exporting and importing uses the whole set of configuration.
• Solution: Configuration split
  for now: drupal console command
• Remeber: you opt out of the consistency guarantee CM promises you. Use a staging environment where you don't do this.

Working withDefault content

• Scenario: Deploying configuration that depends on content, i.e. blocks or taxonomy terms.
• Problem: Content is not exported along with configuration.
• Solution 1: handle core event \Drupal\Core\Config\Importer\MissingContentEvent.
• Solution 2: Use Migrate module, now in core.
• Solution 3: Use default_content contrib module.

Working withContent updates

/**
 * Executes an update which is intended to update data, like entities.
 *
 * These updates are executed after all hook_update_N() implementations.
 * At this stage Drupal is already fully repaired so you can use any API
 * as you wish.
 */
function hook_post_update_NAME(&$sandbox) {}


Related contrib projects

config_installer: install site from existing config.
config_readonly: locks any configuration changes via UI.
config_update: report changes between original and active config of a module.
config_devel: module helps with developing configuration.
config_tools: automatically commit config changes to git.
features: bundle config for re-use on different site, ideal for distributions.
